Smokeless Tube-type Internal Circulation Oil Fume Purifier

SKU:

Shanghai multi-ring brand smokeless pipe internal circulation fume purifier, no need for external flue, can be used in office buildings, community bottom merchants, shopping malls, supermarkets, basements, schools and other places without smoke exhaust conditions or very high requirements for fume emissions, is a kitchen fume purification equipment and an air purifier that can purify the kitchen air, it not only purifies the oil fume but also purifies the indoor air, truly realizing no outdoor emission and indoor pollution.

Four major functions of the product:

  1. Separation and purification of oil fumes
  2. V0Cs, odor removal
  3. Cyclic cold suspicion cools down
  4. UV photolytic nano sterilization and disinfection

Fume purification, odor removal, sterilization and disinfection, condensation and cooling

Download PDF

Loading...

Description

Shanghai multi-ring brand smokeless pipe internal circulation fume purifier, no need for external flue, can be used in office buildings, community bottom merchants, shopping malls, supermarkets, basements, schools and other places without smoke exhaust conditions or very high requirements for fume emissions, is a kitchen fume purification equipment and an air purifier that can purify the kitchen air, it not only purifies the oil fume but also purifies the indoor air, truly realizing no outdoor emission and indoor pollution.

Four major functions of the product:

  1. Separation and purification of oil fumes
  2. V0Cs, odor removal
  3. Cyclic cold suspicion cools down
  4. UV photolytic nano sterilization and disinfection

Specifications

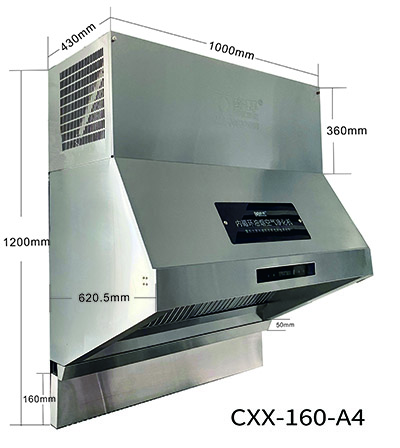

型号 / Model No. CXX-160-A4
外形尺寸 / Overall Dimensions 1000x620x1200(mm)
杀菌管功率 / Sterilization Lamp Power 8Wx2
净重 / Net Weight 50Kg
气味降低度 / Odor Reduction Rate > 99%
防触电保护类型 / Protection Against Electric Shock Classification Class I
照明 / Illumination 1.5Wx2
噪音 / Noise ≤60dB
风压 / Air Pressure ≥280Pa
电源 / Power Supply 220v/50Hz
除菌效率 / Sterilization Efficiency > 99%
主电机额定输入功率 / Main Motor Rated Input Power 150W
排风量 / Exhaust Air Volume >21m³/min
油脂分离率 / Grease Separation Rate > 99.99%
有害气体净化率 / Harmful Gas Purification Rate > 99%
颗粒物去除率 / Particulate Matter Removal Rate > 99%
室外污染气体排放 / Outdoor Pollutant Gas Emission 0
整机额定输入功率 / Whole Machine Rated Input Power 169 W
